What Is Mail Routing? How Email Gets Delivered

Every time you hit send, your email doesn’t just teleport to someone’s inbox. It passes through a chain of servers, lookups, and checks, each one deciding whether that message continues forward or gets turned away. That entire process is called mail routing.

Understanding how mail routing works helps explain why some emails are delivered, some bounce, and others are blocked before they ever reach the inbox. If you’ve ever wondered why some campaigns underperform despite good content, routing and configuration issues are often part of the answer.

What Is Mail Routing?

Mail routing is the mechanism that directs an email from the sending server to the correct destination. In a similar way to how physical mail is sorted by address and passed through distribution centers, email is routed step by step through a series of servers, using the recipient’s domain to determine where it goes next.

When you send a message to [email protected], your mail server doesn’t have a direct address for that inbox, so it has to look one up. Mail routing is the set of protocols and records that make that lookup and delivery possible.

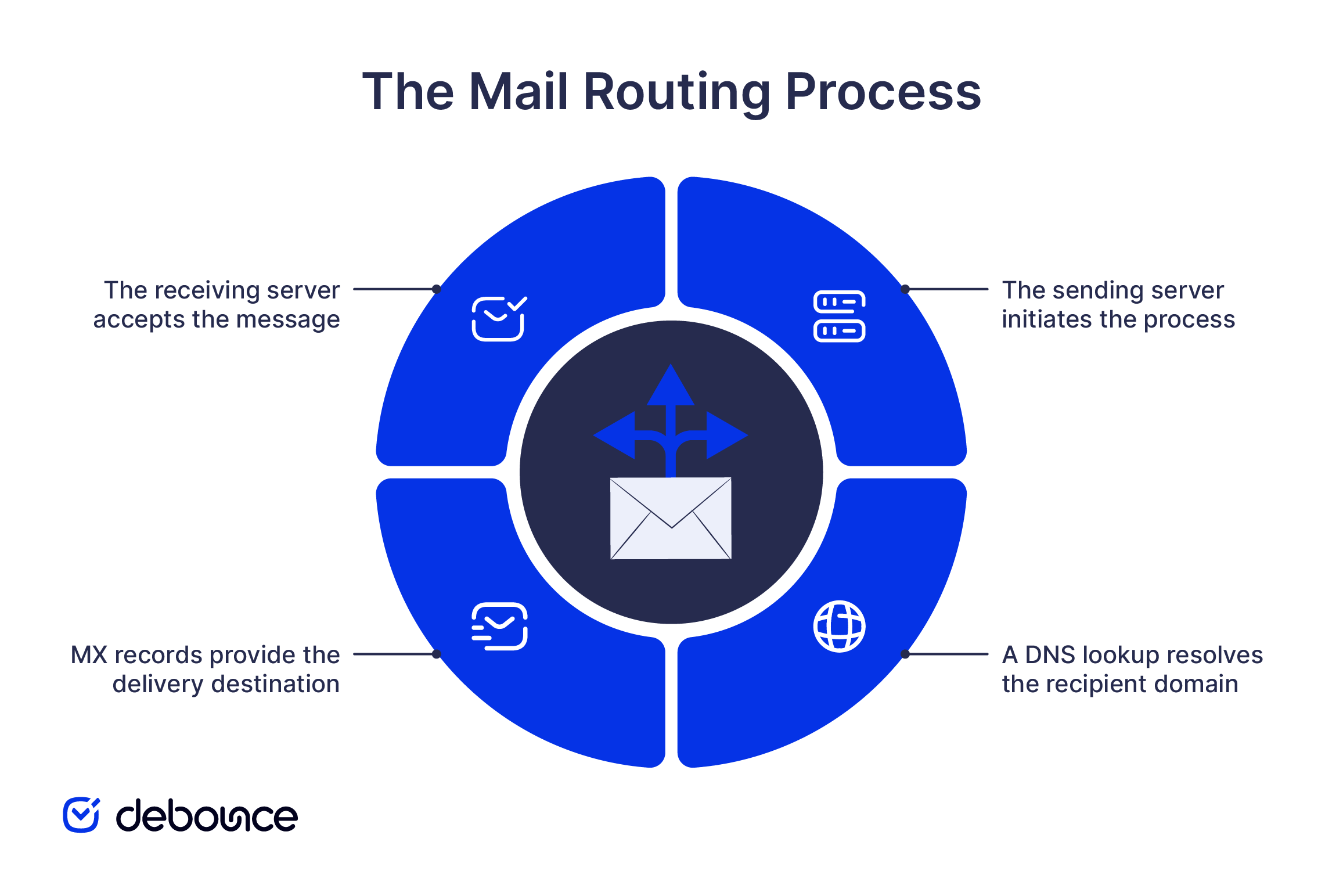

How mail routing works

The routing process starts the moment you send a message. Here’s what happens:

1. The sending server initiates the process: Your email client hands the message to your outgoing mail server (typically via SMTP). That server is now responsible for finding where to send it.
2. A DNS lookup resolves the recipient domain: Your sending server queries the DNS system for the recipient’s domain, such as example.com. DNS functions as a directory that maps domain names to the servers responsible for handling them.
3. MX records provide the delivery destination: The DNS response returns one or more MX records for the domain, each pointing to a mail server authorized to receive its email. These servers are ranked by priority, so the sending server tries the highest-priority option first and moves down the list if needed.
4. The receiving server accepts the message: The sending server connects to the recipient’s mail server via SMTP and delivers the message, after which the receiving server evaluates it against its filters and rules. If it passes these checks, the message is accepted and placed in the recipient’s inbox.

This entire sequence typically takes a few seconds. When it works, it’s invisible. When any step fails, like when there’s a missing MX record, a rejected connection, or a filtering block, the message either bounces or gets deferred.

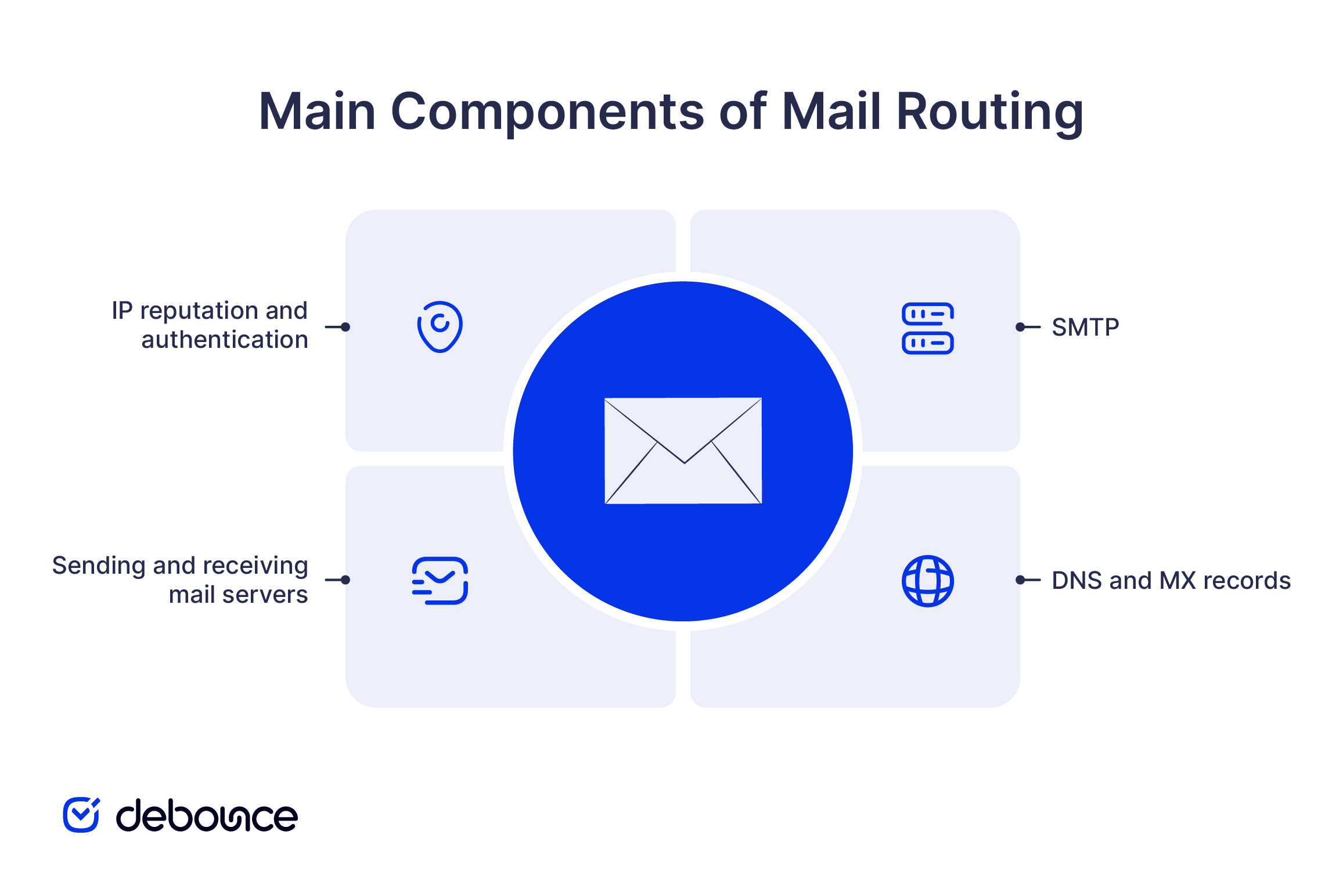

Key Components of Mail Routing

Several technical elements are involved in making mail routing work, and each plays a specific role in the process.

SMTP

SMTP (Simple Mail Transfer Protocol) handles the actual transfer of email between servers. It defines how servers connect, introduce themselves, and pass message data back and forth. Once a destination server is identified, SMTP is what carries the message there. Many delivery issues that aren’t related to DNS tend to occur at this stage, often during connection attempts or server checks.

DNS and MX records

DNS and MX records determine where an email should be sent. When a message is addressed to a domain, the sending server queries DNS to find its MX records. These records point to the mail servers responsible for receiving messages for that domain. If MX records are missing or incorrect, the sending server has no clear destination, and delivery fails early in the process.

Sending and receiving mail servers

Mail routing depends on the infrastructure at both ends. The sending server initiates the process by preparing and forwarding the message, while the receiving server accepts incoming mail and decides what to do with it. Once accepted, the message is placed into the recipient’s mailbox. Any misconfiguration on either side can interrupt the flow.

IP reputation and authentication

Even when routing is technically correct, acceptance is not guaranteed. Receiving servers evaluate the sender before accepting a message. Authentication methods such as SPF, DKIM, and DMARC confirm that the sender is authorized to use the domain. At the same time, IP reputation signals whether the sender is considered trustworthy. Poor email sender reputation, often caused by high bounce rates or spam trap hits, can lead to messages being rejected or filtered despite correct routing.

Types of Mail Routing

Different mail routing setups are used depending on how email needs to be handled, with each type serving a specific purpose within the delivery process.

Inbound mail routing

Inbound routing manages messages coming into your domain. When someone sends you an email, their server looks up your MX records and delivers the message to your receiving server. From there, routing rules can sort, filter, or redirect messages before they reach the final inbox, helping control how incoming mail is organized and handled.

Outbound mail routing

Outbound routing covers the messages your organization sends out. Your mail server identifies the recipient’s domain, retrieves its MX records, and connects to the appropriate server for delivery. This is the stage where factors such as sender reputation, authentication, and list quality have a direct effect on whether messages are accepted or blocked.

Internal mail routing

Internal routing applies within organizations that manage their own mail systems. Messages sent between users on the same domain can be handled entirely within internal servers, without being routed across the public internet. This keeps communication faster and reduces exposure to external filtering layers.

Conditional mail routing

Conditional routing introduces rule-based logic into the process. Messages are directed or handled differently based on defined criteria, such as sender, domain, keywords, or message content. This allows organizations to automate sorting, apply security checks, or route specific types of email to designated inboxes or review queues.

Mail Routing Rules and Configuration

Routing rules are instructions applied at the server or platform level that control how messages are handled during delivery. They’re the admin’s tool for shaping how email flows through an organization.

Common use cases include routing by domain (directing all mail from a partner domain to a shared inbox), routing to aliases (forwarding messages sent to support@ to a team mailbox), and department-based routing (ensuring billing queries reach finance automatically).

Most email platforms provide built-in tools to manage these rules. Services such as Google Workspace and Microsoft 365 allow administrators to configure default routing, set up split delivery, and define inbound gateways that pass messages through security layers before they reach users.

For senders managing large volumes, routing rules also interact with email spam filtering systems. A misconfigured rule can accidentally route legitimate mail into spam quarantine or bypass security filters that were meant to screen for malicious content.

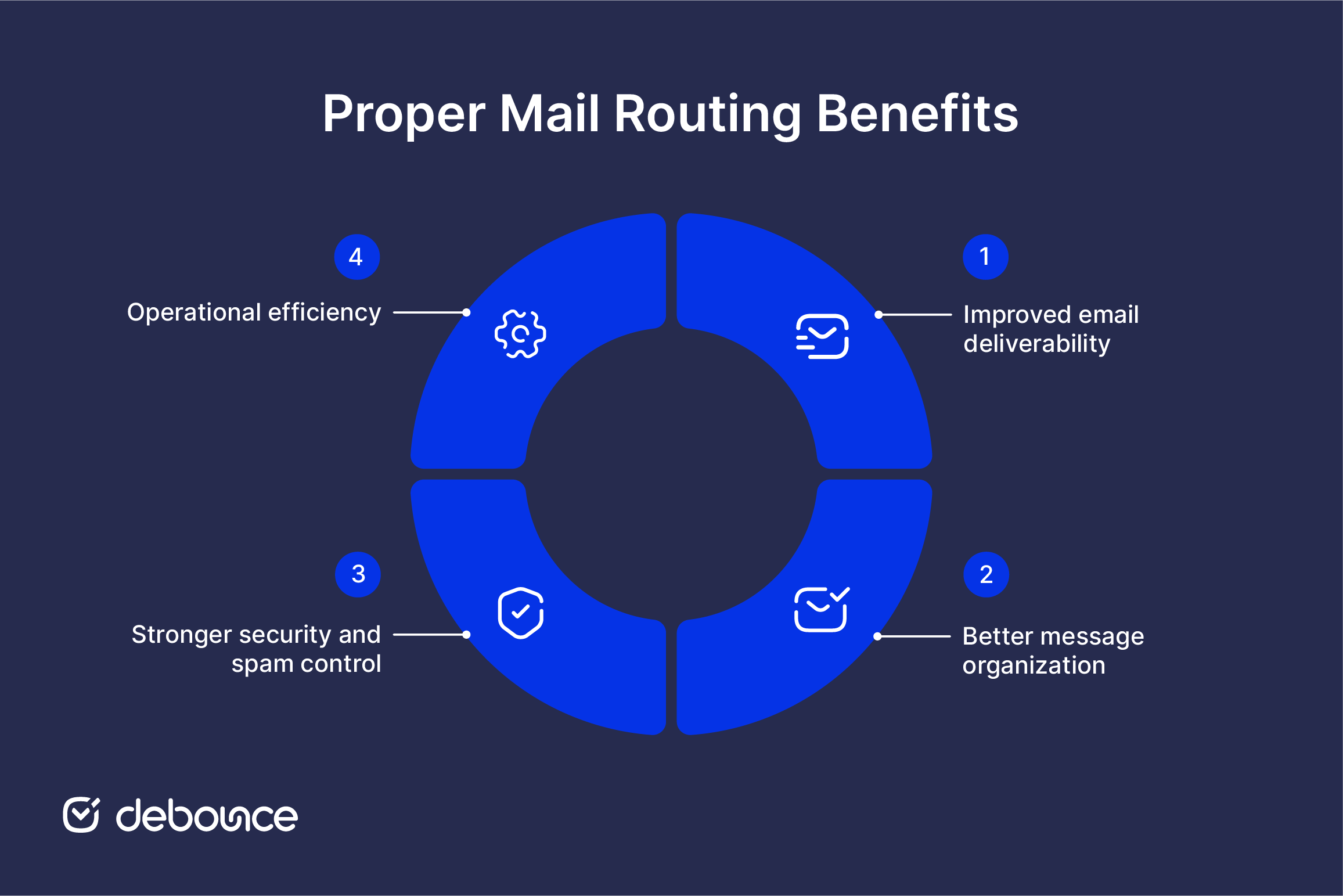

Benefits of Proper Mail Routing

When mail routing is configured correctly, it affects how teams manage communication, security, and daily workflows.

• Improved email deliverability: Messages reach their intended destination rather than bouncing or getting deferred. Clean routing reduces the likelihood of a hard or soft bounce caused by server-side issues, helping maintain consistent delivery performance.
• Better message organization: Routing rules keep inboxes manageable. Support tickets, billing inquiries, and internal communications reach the right team without manual sorting.
• Stronger security and spam control: Properly configured inbound routing works alongside authentication methods such as SPF, DKIM, and DMARC to filter out unauthorized or suspicious messages. This adds an extra layer of protection before emails reach end users.
• Operational efficiency: Automated routing removes the need for manual triage. Messages are directed based on predefined rules, allowing teams to focus on responding rather than sorting, which improves response time and overall workflow efficiency.

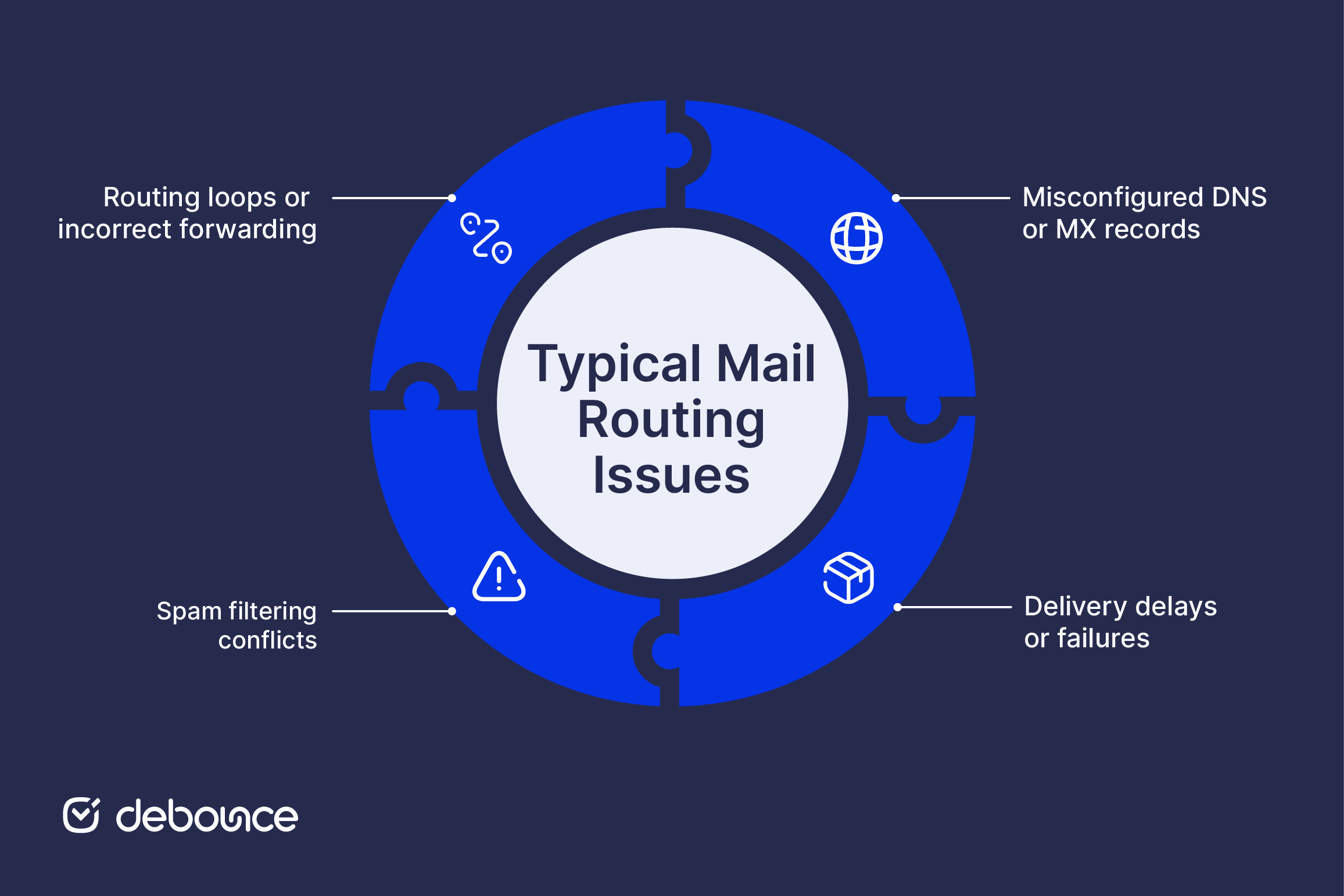

Common Mail Routing Issues

Even with good infrastructure, routing problems come up. Here are the most common ones and how to address them:

• Misconfigured DNS or MX records: If your MX records point to the wrong server or have syntax errors, inbound mail fails entirely. Use a DNS lookup tool to verify your records and confirm they resolve correctly before assuming a delivery problem is elsewhere.
• Delivery delays or failures: Receiving servers sometimes defer messages rather than reject them outright; this is called greylisting. Your sending server will retry delivery, but persistent delays often indicate a reputation issue or a receiving server that’s temporarily overloaded. Check your bounce logs for SMTP error codes to identify the cause.
• Spam filtering conflicts: A message can be routed correctly and still end up in spam if the receiving server’s filters flag it. This is often a content or reputation issue rather than a routing failure. Verify your authentication records are in place and that your sending domain isn’t listed on any blocklists.
• Routing loops or incorrect forwarding: A routing loop occurs when two servers keep forwarding a message to each other. This typically happens when forwarding rules are misconfigured. Audit your forwarding rules carefully, especially after migrations.

Keep Your Routing Reliable: Start with a Clean List

Mail routing is the invisible infrastructure behind every email you send. When DNS lookups succeed, MX records are correctly configured, and receiving servers accept your messages, delivery works. When any part of that chain breaks, messages bounce, get deferred, or land in spam.

However, if your list contains invalid, inactive, or risky addresses, even perfect routing won’t save those sends. Cleaning an email list before campaigns reduces bounce rates, protects your sender reputation, and means your routing infrastructure is working on messages that have a real chance of reaching someone.
